BRAND articulated slurry mixer
Stable agitation technology in a modular system – BRAND quality that pays off!
- New application options
- With functional joint
Slurry mixer with a joint in the series

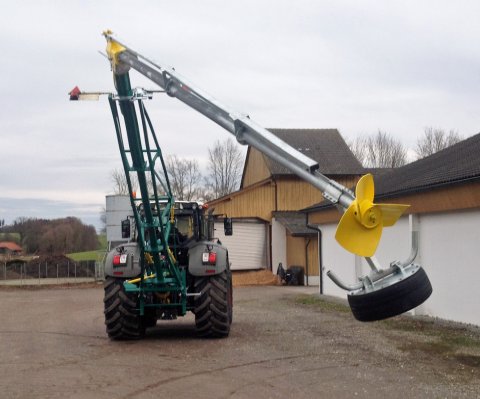

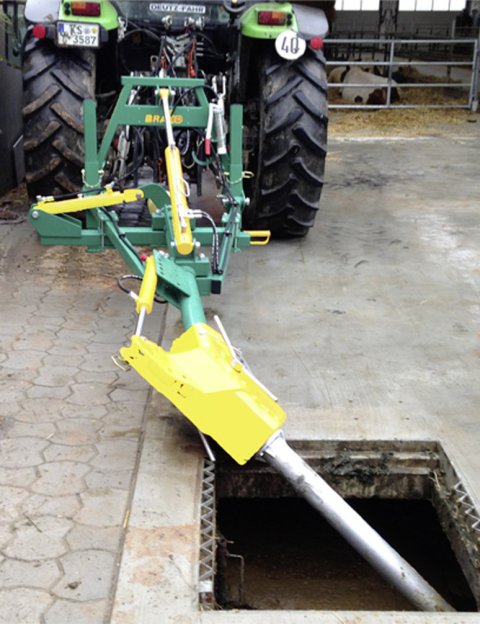

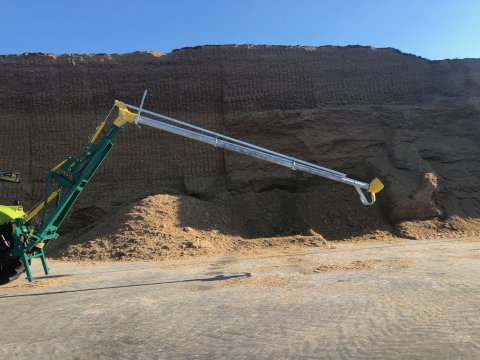

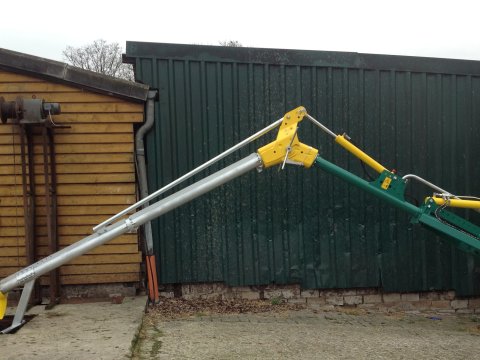

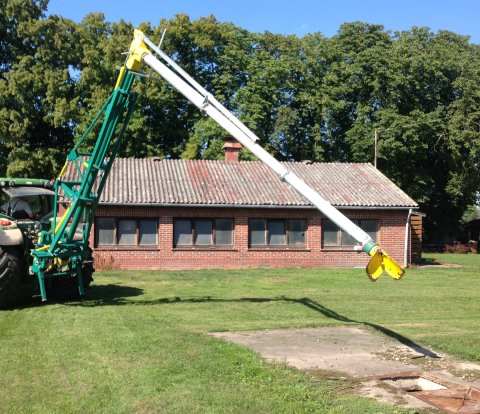

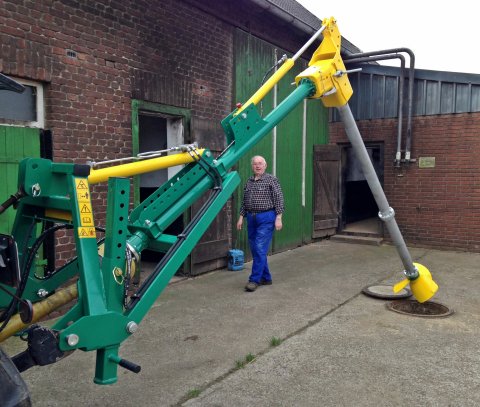

Slurry mixer with a joint in the series Lightweight bearing frame (L)

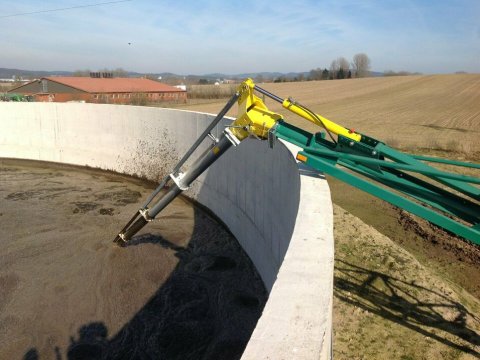

- Suitable for elevated tanks with tank heights of up to 2.5 m, as well as for lagoons and pits
- 3-point, lightweight bearing frame
- Ideal for narrow conditions
- Mixer length via segmented design made of Ø 102 mm pipe (can be changed individually)
- Bearing frame angle adjustment with hydraulic cylinder
- Quick coupling joint for separated transport
- Joint actuated hydraulically from the hauler
- Large flange bearing for smooth running and high axial forces
- 42 CroMo4 high-tempered connection shaft for high torques
- Pressure vane Ø 600 mm (other vanes on request)
- High quality vane bearing seal
- Easy to handle, as the cardan shaft does not have to be removed when relocating
- Hydraulic sideways pivoting for an increased operating range (optional)
![](index.php?rex_media_type=img480&rex_media_file=guelle-gelenkmixer_l_4_.jpg)
![Güllemixer / Gelenkmixer Serie L Güllemixer / Kleiner Gelenkmixer](index.php?rex_media_type=img480&rex_media_file=einsetzenkleinergelenkmixer_neu.jpg)
![gelenkmixer vor stall im runden Loch Güllemixer / Gelenkmixer](index.php?rex_media_type=img480&rex_media_file=l_gelenkmixer_l_vor_stall_im_runden_loch.jpg)
![Gelenkmixer Bock Güllemixer / Gelenkmixer](index.php?rex_media_type=img480&rex_media_file=l_gelenkmixer_bock_l.jpg)

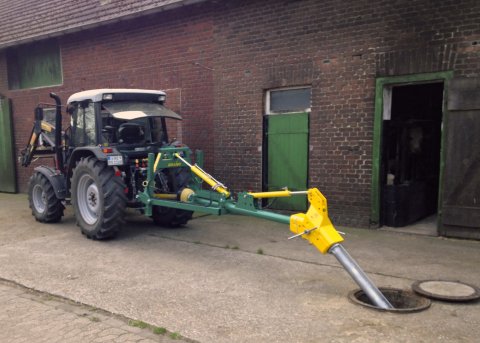

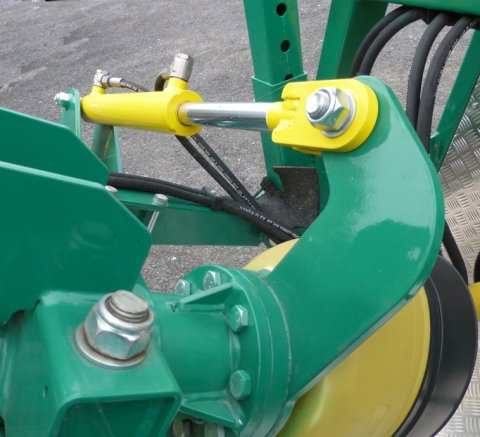

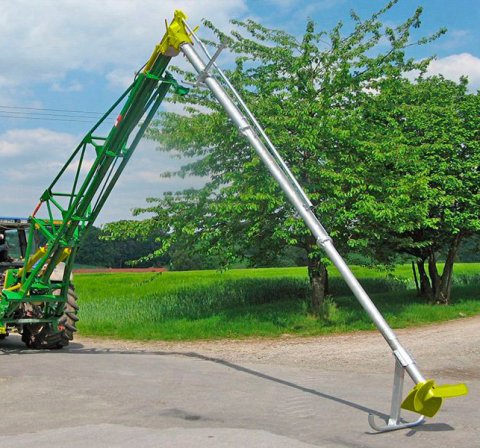

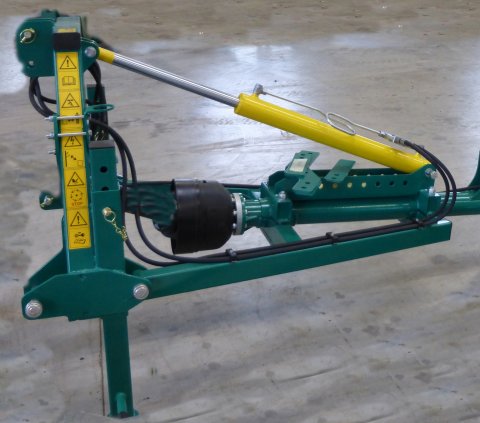

Medium bearing frame (M)
- Suitable for elevated tanks with tank heights of up to 4 m, as well as for lagoons and pits
- Hydraulic sideways pivoting for an increased operating range (optional)
- 3-point, medium bearing frame
- Ideal for narrow conditions
- Mixer length via segmented design made of Ø 133 mm pipe (can be changed individually)
- Bearing frame angle adjustment with hydraulic cylinder
- Joint actuated hydraulically from the hauler
- Quick coupling joint for separated transport
- Large flange bearing for smooth running and high axial forces
- 42 CroMo4 high-tempered connection shaft for high torques
- Pressure vane Ø 600 mm (other vanes on request)
- High quality vane bearing seal
- Easy to handle, as the cardan shaft does not have to be removed when relocating
- Hydraulic sideways pivoting for an increased operating range (optional)
![](index.php?rex_media_type=img480&rex_media_file=guelle-gelenkmixer_l_3_.jpg)
![Gelenkmixer / Güllemixer Serie M Kleiner Güllemixer](index.php?rex_media_type=img480&rex_media_file=eye-2-1-4_kleiner_gm_2.jpg)
![Lagunenmixer / Güllemixer B02 Güllemixer / Gelenkmixer Schwenkarm](index.php?rex_media_type=img480&rex_media_file=gelenkmixer_m_seitlich_geschwenkt_mit_fs_lagunen_1.jpg)
![Lagunenmixer / Güllemixer B02 Güllemixer / Gelenkmixer in Aktion](index.php?rex_media_type=img480&rex_media_file=gelenkmixer_in_lagune-2.jpg)
Jumbo bearing frame (L)
- Suitable for elevated tanks with tank heights of up to 5.5 m, as well as for lagoons and pits
- Hydraulic slope supports for stability on uneven terrain (optional)
- 3-point, heavy duty bearing frame
- Mixer length via segmented design made of Ø 133 mm pipe (can be changed individually)
- Bearing frame angle adjustment with hydraulic cylinder
- Joint actuated hydraulically from the hauler
- Quick coupling joint for separated transport
- Large flange bearing for smooth running and high axial forces
- 42 CroMo4 high-tempered connection shaft for high torques
- Pressure vane Ø 600 mm (other vanes on request)
- High quality vane bearing seal
- Easy to handle, as the cardan shaft does not have to be removed when relocating
- Hydraulic sideways pivoting for an increased operating range (optional)
![](index.php?rex_media_type=img480&rex_media_file=guelle-gelenkmixer_m_3_.jpg)
![Gelenkmixer / Güllemixer Serie J](index.php?rex_media_type=img480&rex_media_file=2-1-2_b65-65s_guellegelenk-mixer_r2.jpg)
![Gelenkmixer / Güllemixer Serie J](index.php?rex_media_type=img480&rex_media_file=gelenkmixer_j_vor_behaelter_bearbeitet.jpg)
![](index.php?rex_media_type=img480&rex_media_file=gelenkmixer_j_mit_faltfluegel.jpg)
With the Brand quick coupling joint, the mixers can be separated in just a few movements. Driving on the road is not a problem thanks to the transport bracket that is available as additional equipment. All mixers are flanged after a maximum of 2 metres and the drive is interrupted. This ensures particularly smooth running and enables the mixers to be extended subsequently. Slurry mixers in the L and M series are available with a chain or with a hydraulic cylinder. The mixers in the J series are equipped with hydraulic cylinders as standard. To extend the operating range or on tanks with a diameter of more than 20 metres, the additional equipment for pivoting the mixer sideways is helpful. The tank can therefore be stirred from a different position.
Outstanding variability thanks to modular system
- for slurry silos, lagoons, pits, forced circulation systems
- flexible, problem-free, extremely easy to maintain, rotatable, pivotable, extendible
- all-purpose
Further benefits of Brand slurry mixers:
- Excellent value for money
- Stable flange and a long service life
- The stable BRAND modular design guarantees the highest performance and a long service life combined with minimum maintenance costs
- Easy to handle and quick to use are distinguishing features of BRAND’s high quality products
- The mixer can be retracted and extended easily from the hauler seat
- Effortless stirring of the coarsest floating layers and sediment layers to form even, homogenised slurry
- With the BRAND quick coupling joint, the mixer can be separated in just a few movements. The middle piece can also be taken out without problems, as the joints can be combined with each other
Brand slurry mixer accessories and options
![](index.php?rex_media_type=img480&rex_media_file=2-1-7_-_zubeh_r_-_einh_ngekonsole_zum_transport_1.jpg)
Transport device with attachment bracket
![](index.php?rex_media_type=img480&rex_media_file=2-1-8_zubeh_r_hydraulische_bodenst_tzen.jpg)
Hydraulic slope supports
![](index.php?rex_media_type=img480&rex_media_file=2-2-6_-zusatzausr_stung_-_hydaulische_seitliche_schwenkung_1.jpg)
Hydraulic sideways pivoting
- Vane support/round agitator ring/angular agitator ring
- Cardan shaft
- Lighting including warning sign
- Radio camera system
