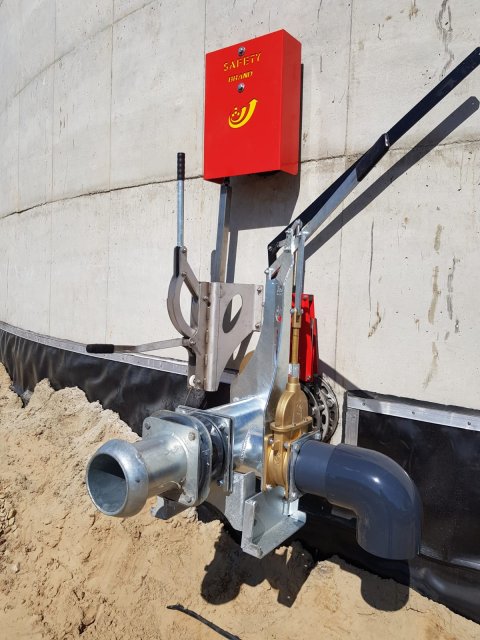

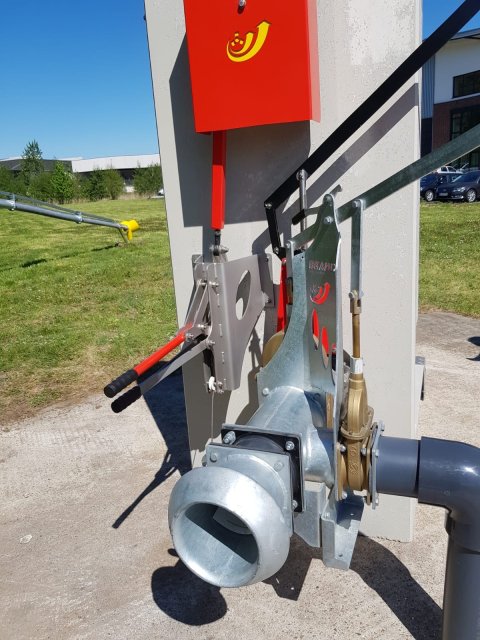

BRAND JGS removal station

BRAND stationary removal station for concrete tank for liquid manure and slurry according to TRwS

Slurry removal station according to the latest regulations of the AwSV: (Ordinance on Facilities for Handling Substances Hazardous to Water)

  • 8 inch shuttle jig station
  • External safety slide valve
  • Internal slide valve for mechanical actuation
  • Safety tear-off part after the barrel connection V part
  • Suction spout
  • Internal slide valve locks automatically in the event of damage (optional)

System diameter: DN 200 (8")

External removal height: 200 - 300 mm

For wall thickness: 180 - 320 mm
