BRAND slurry dual-articulated mixer with power take-off shaft drive

Stable agitation technology in a modular system – BRAND quality that pays off!

Slurry mixer, dual-articulated mixer

Ideally suited to inter-company use in lagoons, pits and elevated tanks. The mixer’s equipment is adjusted individually to the relevant requirements and conditions.

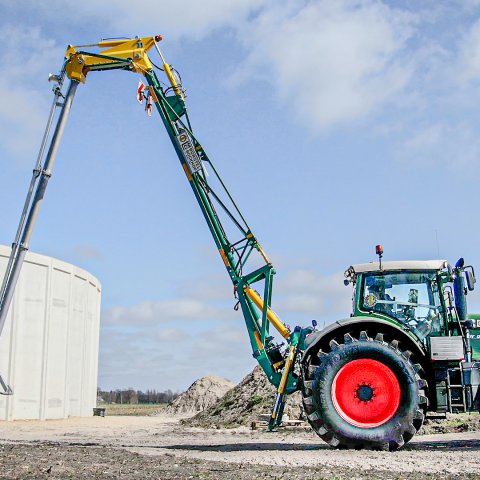

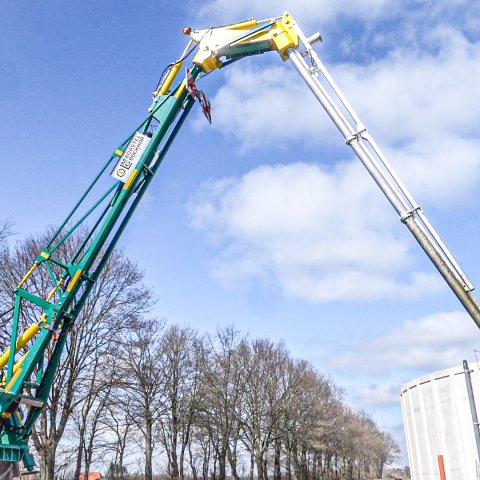

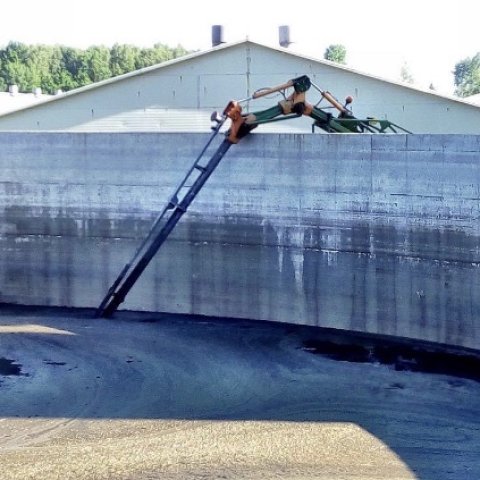

  • Suitable for elevated tanks with tank heights of up to 8.0 m, as well as for lagoons and pits
  • Hydraulic sideways pivoting for an increased operating range (optional)

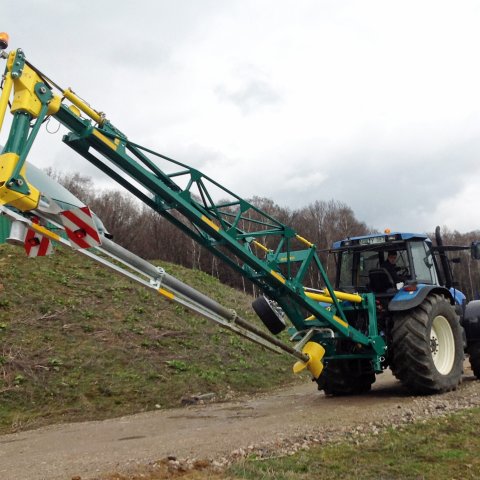

  • Hydraulic slope supports for stability on uneven terrain (optional)
  • 3-point, heavy duty bearing frame (J series)
  • Mixer length via segmented design made of Ø 133 mm pipe (can be changed individually)
  • Bearing frame angle adjustment with hydraulic cylinder
  • Joints actuated hydraulically from the hauler

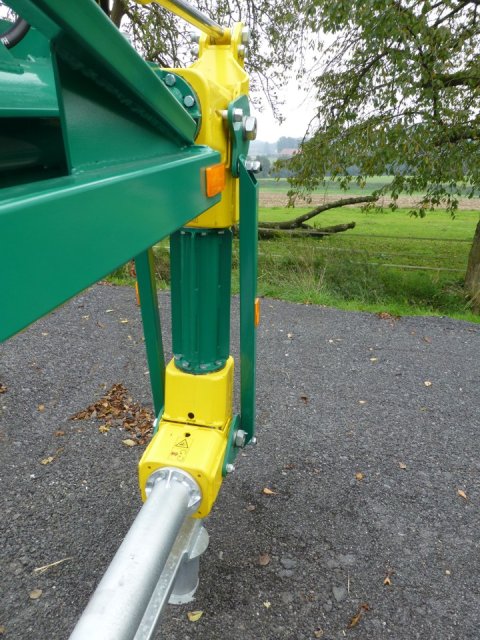

  • Large flange bearing for smooth running and high axial forces
  • 21-part 42 CroMo4 high-tempered connection shaft for high torques (optional: reinforced design with drive unit, 1 3/4 inch, 20-part)
  • High quality vane bearing seal
  • Pressure vane Ø 600 mm (other vanes on request)
  • Easy to handle, as the cardan shaft does not have to be removed when relocating

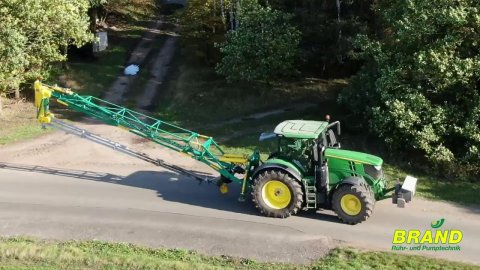

  • Can be folded in quickly and completely for transport
  • Mixers up to a total length of 22 m possible
  • Patented synchronous controller for the joints
Doppelgelenkmixer / Güllemixer

Zubehör Güllemixer:
