BRAND separation technology
Our separators - developed for your success
Worm extruders are used to separate fibrous materials such as slurry, gas residues and other organic waste into their liquid and solid components. When designing our low-maintenance and low-wear worm extruders, we at Brand Rühr- und Pumptechnik place great importance on outstanding separation results.
Brand worm extruders therefore do not just achieve large discharge rates but also supply solids with high dry substance contents. The final result depends on the screen mesh size. Wide screen sizes give a high discharge rate but also lead to low dry substance contents in the solid. Smaller Screen meshes, on the other hand, generate lower throughputs but a higher degree of separation and therefore a more precise solid/liquid separation. The moisture of the discharged solids can be reduced further by higher pressure on the weigh caps.
Technical data of permanently installed separators

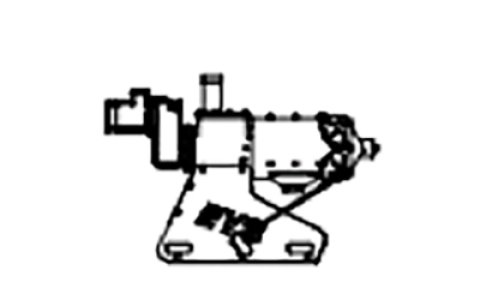

SP 400
- Capacity: 5 - 10 cbm/h
- Length: 1,450 mm
- Width: 700 mm
- Height: 950 mm
- Weight: 300 kg
- Power: 2.2 KW
- Number of screens: 1
- Screen diameter: 258 mm

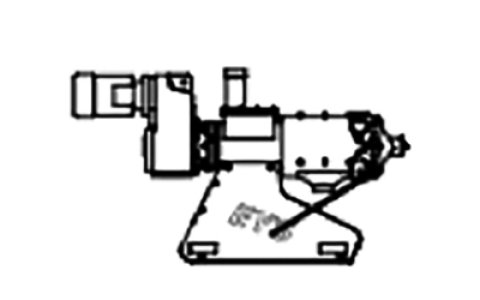

SP 600
- Capacity: 10 - 20 cbm/h
- Length: 1,850 mm
- Width: 1,000 mm
- Height: 1,200 mm
- Weight: 600 kg
- Power: 5.5 KW
- Number of screens: 1
- Screen diameter: 258 mm
SP 600 HD
- Capacity: 15 - 30 cbm/h
- Length: 2,050 mm
- Width: 1,000 mm
- Height: 1,200 mm
- Weight: 730 kg
- Power: 5.5 KW
- Number of screens: 1
- Screen diameter: 258 mm
SP 800
- Capacity: 20 - 40 cbm/h
- Length: 2,100 mm
- Width: 1,000 mm
- Height: 1,200 mm
- Weight: 660 kg
- Power: 5.5 KW
- Number of screens: 2
- Screen diameter: 258 mm
SP 800 HD
- Capacity: 20 - 40 cbm/h
- Length: 2,300 mm
- Width: 1,000 mm
- Height: 1,200 mm
- Weight: 780 kg
- Power: 11 KW
- Number of screens: 2
- Screen diameter: 258 mm
Technical data for MS 800 mobile separator
- Switch cabinet: 32 A in total
- Gross weight: 2,700 kg
Worm extruder
- Type: SP 800 HD
- Power: 11 KW
- Capacity: 15 - 30 m3/h
Substrate pump (+ frequency converter)
- Type: KL 50S
- Power: 5.5 KW
- Capacity: 20 - 40 m3/h
Central pump
- Type: GP 55
- Power: 5.5 KW
- Capacity: 40 - 60 m3/h
The right system for you.
Regardless of your separation requirements, you will find the right solution in our comprehensive product range. We either offer a mobile rental system or numerous purchase options such as stationary or mobile separators, standard or reinforced, heavy duty separators.
We’d be happy to arrange the right size for your operation in a personal consultation.
Squeeze your profits out. Right down to the last drop
In times of ever-increasing substrate costs, separated solids can represent an interesting alternative as an input material for biogas systems. Research shows that around 2.5 tonnes of solid can replace the energy of around 1 tonne of maize. The solid is also ideally suited as litter for cubicle housing systems and can therefore help to reduce litter costs.
In addition to the numerous application options for the solids, separation also offers other unbeatable benefits. On the one hand, it increases transport capability for the organic liquid fertiliser and on the other hand, you relieve your warehouses thanks to the reduced volume and simultaneous nutrient concentration.
