BRAND B07 hydraulic slurry mixer
Stirring blade with hydraulic motor for farm loader (B07-BMM)
- Slatted floor mixer high-alloyed stirrer with hardened high-alloyed shaft and fixed vane
- Minimum dimensions
- for slat width: 23 mm
- for slot length: 210 mm - Roller motor with 40 to 60 l oil flow in continuous operation
- Bearing made of special bronze with water pressure lubrication
- Connection to the pallet fork receptacle
- Stainless steel stirrer with hardened shaft and fixed vane for extraction and pushing
- Simple vane lock in the slot setting
- Infinitely variable stirring blade that can rotate around the motor axis
- A rigid vane enables extraction and pushing work
Slurry mixer stirrer lengths:
- 1.0 m
- 1.3 m
- 1.5 m
Other lengths on request
Slurry mixer additional options:
- Wall bracket
- Lighting
- Stirrer cladding

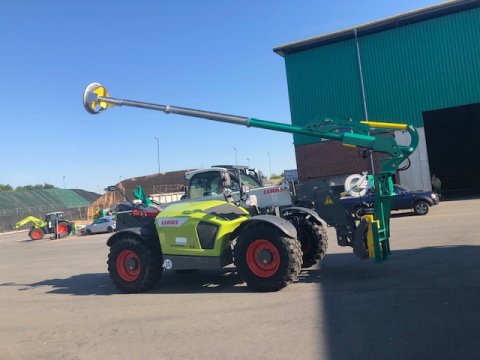

Paddle with hydraulic motor for telescopic handler and front loader (B07-TL/FL)
- Paddle with hydraulic motor for telescopic handler and front loader (B07-TL/FL)
- Paddle with Ø 133 mm reduced on the vane part to Ø 102 mm with receptacle for hydraulic motor
- Paddle with a stable, flanged, segmented design
- Large flange bearing for smooth running and high axial forces
- 42 CroMo4 high-tempered connection shaft for high torques
- High quality vane bearing seal
Paddle receptacle, vane and hydraulic motor are designed individually according to the haul truck
Slurry mixer additional options:
- Swing into transport position (on the telescopic handler)
- Pivoting sideways increases the operating range (on the telescopic handler)
Rührstange mit Hydromotor für Bagger (B07-BA)
- Paddle with Ø 133 mm reduced on the vane part to Ø 102 mm with receptacle for hydraulic motor
- Paddle with a stable, flanged, segmented design
- Large flange bearing for smooth running and high axial forces
- 42 CroMo4 high-tempered connection shaft for high torques
- High quality vane bearing seal
- Performance possible with a digger of up to 190 HP
Paddle receptacle, vane and hydraulic motor are designed individually according to the haul truck

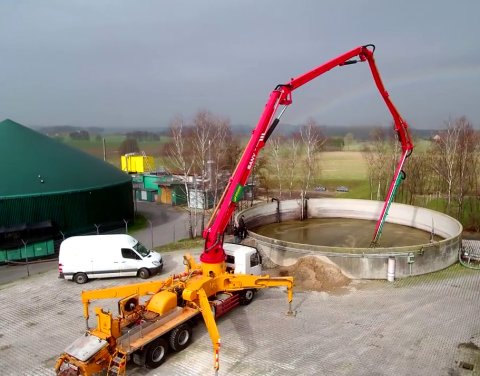

Paddle with hydraulic motor for concrete pump vehicles (B07-BMM)
- Paddle with Ø 133 mm reduced on the vane part to Ø 102 mm with receptacle for hydraulic motor
- Drive rod, 1 3/8‘‘, 21-part
- Paddle with a stable, flanged, segmented design
- Large flange bearing for smooth running and high axial forces
- High quality vane bearing seal
Paddle receptacle, vane and hydraulic motor are designed individually according to the haul truck
