BRAND slurry mixer, straight power take-off shaft mixer/paddles

Straight paddle: B01, B02, B04 and B05

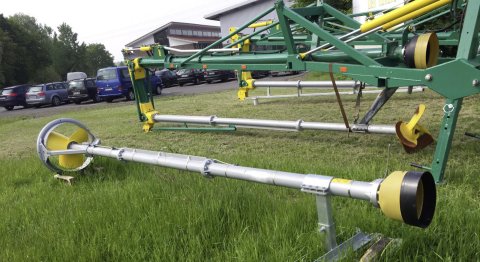

Paddle series B01

  • Paddle with a stable, flanged, segmented design made of a Ø 102 mm pipe
  • Large flange bearing for smooth running and high axial forces
  • 42 CroMo4 high-tempered connection shaft for high torques
  • Extraction or pressure vane Ø 600 mm (other vanes on request)
  • High quality vane bearing seal
  • Galvanised or with acid-resistant powder coating
  • Lubrication line possible for fixed installation

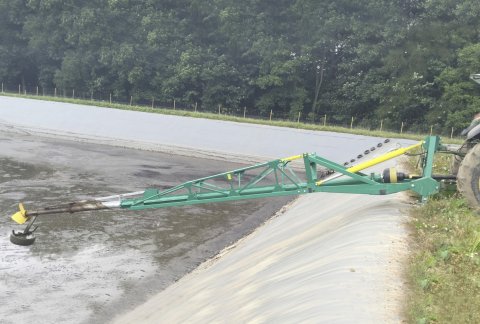

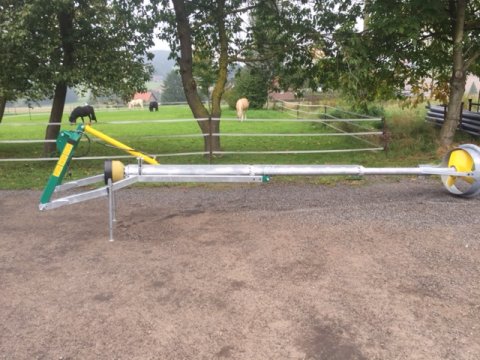

Lagoon mixer series B02

  • Series L: up to max. 8 m (lightweight bearing frame)
    Series M: up to max. 9 m (medium bearing frame)
    Series J: up to max. 13 m (jumbo bearing frame)
  • Paddle with a stable, flanged, segmented design made of a Ø 102 mm or Ø 133 mm pipe
  • Large flange bearing for smooth running and high axial forces; stable, extendible ground support with handle
  • 42 CroMo4 high-tempered connection shaft for high torques
  • Stable, extendible ground support with handle
  • Additional frame reinforcement for long mixers in the J series
  • Extraction or pressure vane Ø 600 mm (other vanes on request)

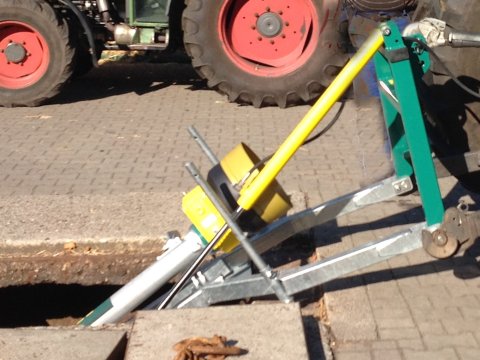

Folding frame mixer series B04

Slurry mixer series B04

  • Ideal for slalom systems, as well as for open and closed pits
  • High quality vane bearing seal
  • Bearing frame angle adjustment with hydraulic cylinder, alternatively with chain
  •  Paddle with a stable, flanged, segmented design made of a Ø 102 mm pipe
  • Large flange bearing for smooth running and high axial forces
  • 42 CroMo4 high-tempered connection shaft for high torques
  • Extraction or pressure vane Ø 600 mm (other vanes on request)

With hydraulic paddle pivoting and automatic pawl on request.


Folding frame mixer series B05

  • Ideal for slalom systems, as well as for open and closed pits
  • High quality vane bearing seal
  • With hydraulic cylinder for paddle pivoting as standard
  • Paddle with a stable, flanged, segmented design made of a Ø 133 mm pipe
  • Large flange bearing for smooth running and high axial forces
  • 42 CroMo4 high-tempered connection shaft for high torques
  • Extraction or pressure vane up to Ø 700 mm (other vanes on request)

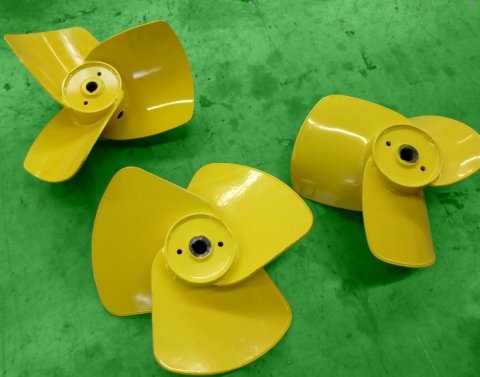

Vanes

The BRAND stirring vane is particularly effective thanks to its special shape.

It is available for pushing, extraction or as a neutral vane - standard vane size: 600 mm (other designs possible).

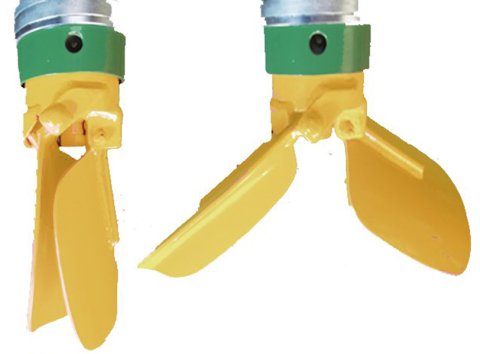

A folding vane is available for smaller openings (Ø 200 mm).


Slurry mixer accessories

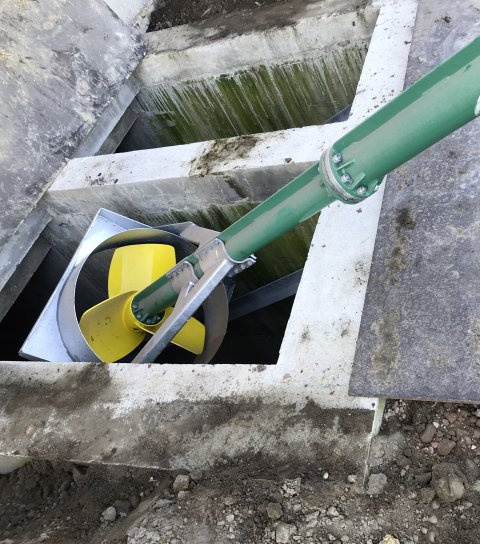

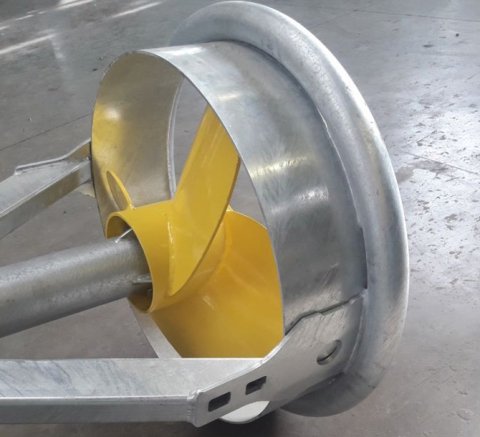

  • Round agitator ring

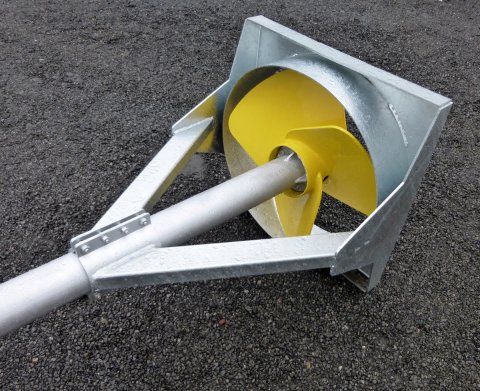

  • Angular agitator ring
  • Vane supports
  • Wall-mounted frame
  • Wall bracket
  • Support bracket
  • Cardan shafts
