BRAND Mini-Mix Jet surface channel mixer / slatted floor mixer

The Jet surface channel mixer works according to the centrifugal pump principle and reaches a significantly wider radius than the slatted floor mixer. It is particularly suited to floating and sediment layers. The opposing agitator jet can be deflected in all directions thanks to the 360°-turnable agitator housing and makes it possible to stir every side. The surface channel mixer is also available as a pump variant. One slat has to be removed when using in an animal shed.

JET surface channel mixer

  • Aggressive dual agitator jet
  • 360° pivoting (patented) enables pivoting into the transport position for easy retrofitting with a slatted floor mixer stirrer
  • Force-neutral thanks to outlet openings arranged on the opposite sides
  • Large operating range thanks to rotating agitator housing
  • High surface performance in deep/shallow channels/pits

Motor sizes:

  • 7.5 kW
  • 9.2 kW
  • 11 kW

at 1450 rpm and 400 V 16 A or 32 A

Stirrer lengths:

  • 0.7 m
  • 1.0 m
  • 1.3 m
  • 1.5 m

Other lengths on request

Minimum pit opening dimensions: 300 x 330 mm

With flap control: 330 x 400 mm

The flap control enables vertical stirring to process sediment layers and fetch floating layers.

JET surface channel mixer + pump

  • The pumping unit enables stirring and pumping in one device
  • Jet housing and vane for a dual, force-neutral agitator jet
  • 3-way adjustable: Stir the sediment layers, general left-right stirring, pump out
  • Large operating range thanks to rotating agitator housing
  • 360° pivoting (patented) enables pivoting into the transport position
  • Easy retrofitting with a slatted floor mixer stirrer

Motor sizes:

  • 7.5 kW
  • 9.2 kW
  • 11 kW

at 1450 rpm and 400 V 16 A or 32 A

Stirrer lengths:

  • 0.7 m
  • 1.0 m
  • 1.3 m
  • 1.5 m

Other lengths on request

Minimum pit opening dimensions: 330 x 410 mm

Slatted floor mixer / slurry mixer special equipment:

  • The flap control enables vertical stirring, which is ideal for deep channels
  • Swivel castor set (standard in the models with an 11 kW motor or a stirrer length of 1.5m)
  • Safety cart brake (standard in the models with an 11 kW motor or a stirrer length of 1.3m)
  • The pumping unit enables stirring and pumping in one device, easy adjustment possible using the latching bar. With B coupling connection (size 75-B)
Vollgummi

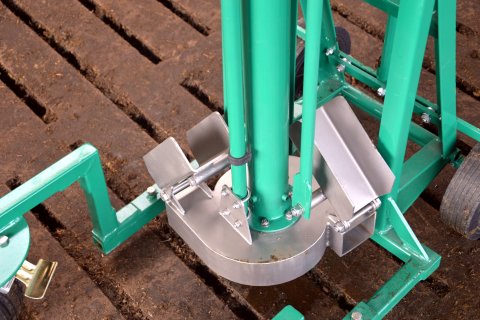

Flap control

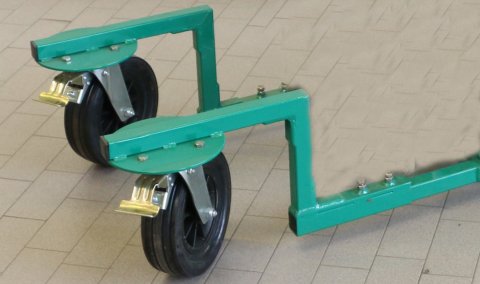

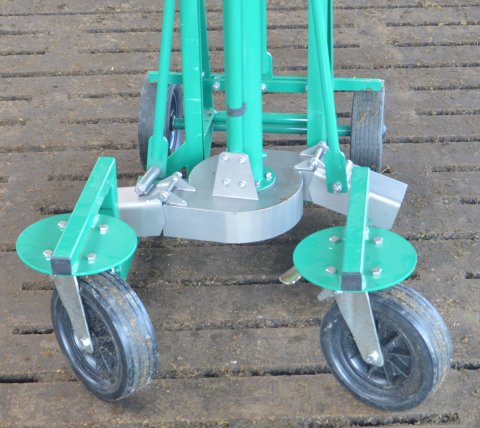

Castor set including parking brake

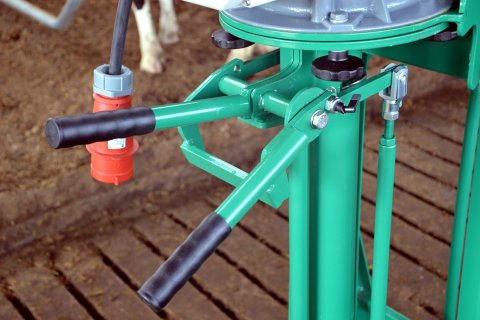

Flap control lock

Safety cart brake

Flap control in transport position

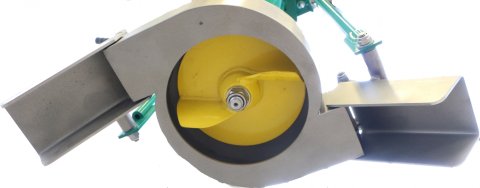

Pumping device
